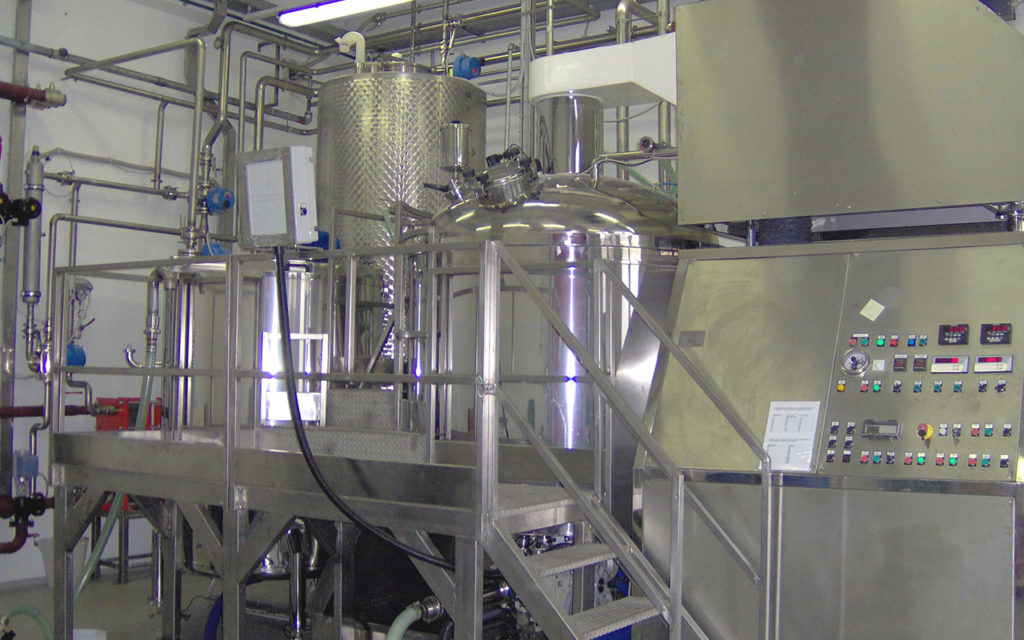

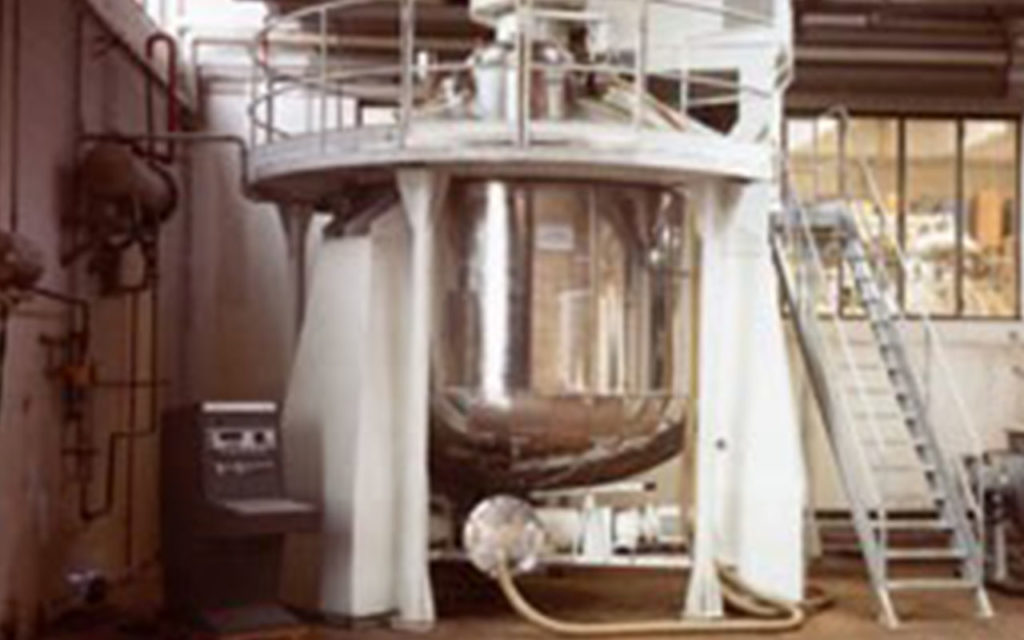

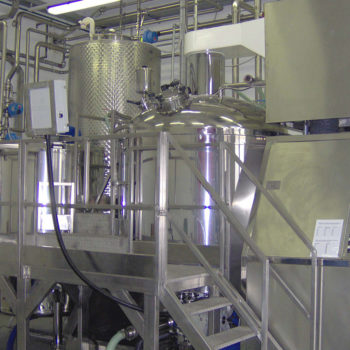

Nuova Cosmar S.r.l. manufactures under vacuum turbo emulsifiers starting from lab machine handling 5 liters to turboemulsifiers of 15.000 liters.
.
Product containment tank
Cylindrical product vessel with cambered bottom and cover.

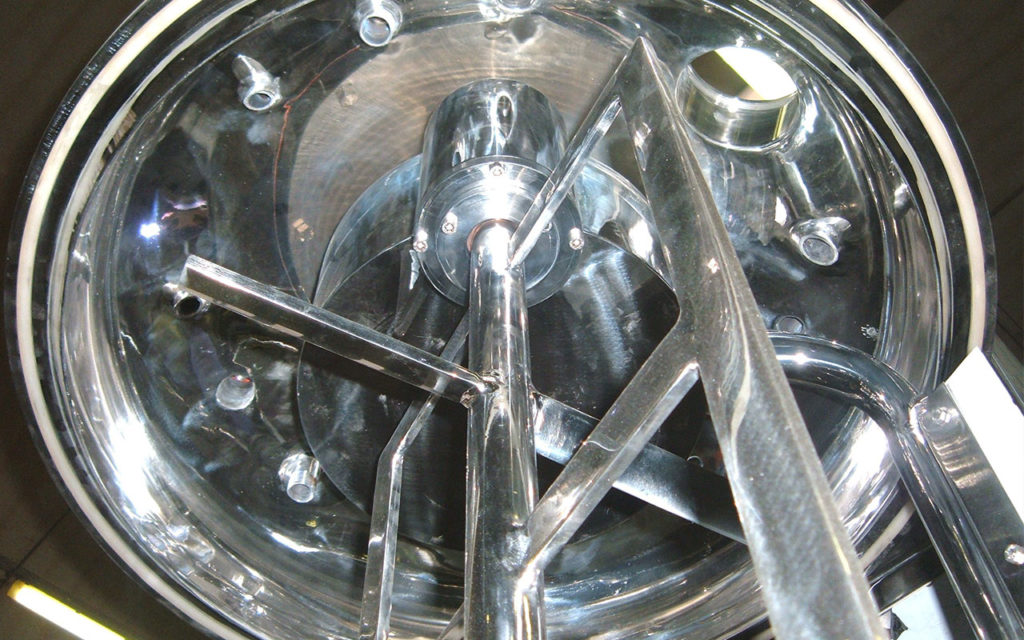

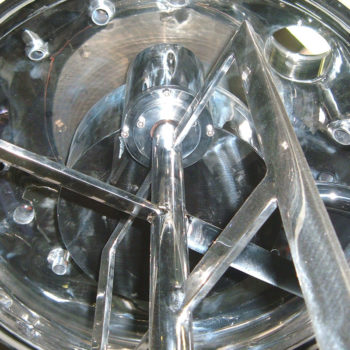

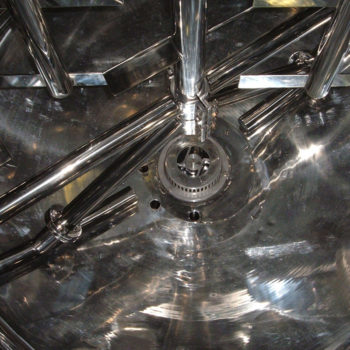

Emulsifier turbine
placed on the vessel bottom, variable speed by inverter, two mechanical seal lubricated with Vaseline oil in a closed circuit: this system guarantees a noiseless process and long-lasting mechanical seals.
Slow mixing
According to customer needs , there are three types of slow mixing:
- Planetary mixing by shovels with Teflon scrapers
- Coaxial counter-rotating anchor with Teflon scrapers
- Simple anchor with Teflon scrapers and two breakwaters fixed to the cover
The vacuum
The vacuum is created by liquid ring vacuum pump and is automatically kept in a range chosen by the operator.

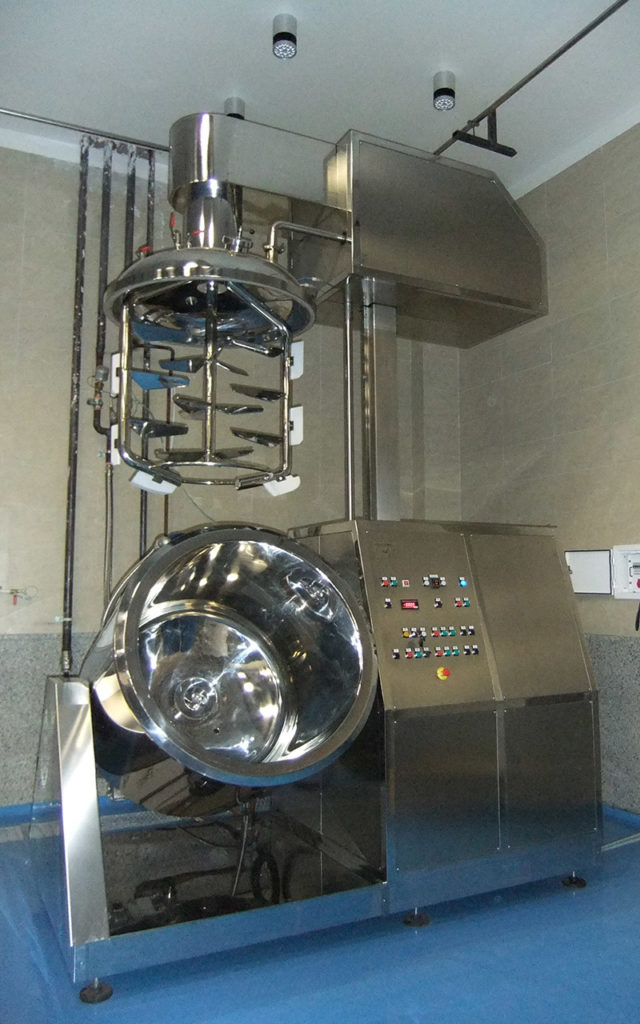

The cover
According to the type of machine the cover can be open hydraulically, in this case the inspection and the raw materials loading is through a hatch of adequate size.
The heating system
The heating system is chosen according to available energy and machine dimensions and could be :
- Electrical via resistances in the jacket
- Hot circulating water from the plant pipes
- Saturated steam introduced into the jacket
- By diathermic oil from the plant pipes
The cooling
The cooling is always through water which could be tap water or from a closed circuit refrigerated by a chilling system.
Possible accessories
- Sanitary lobe pump to discharge the product
- Filtering for the finished product
- Continuous measurement of product pH
- Washing balls for automatic cleaning
- Loading cells for the components’ dosing
- PLC for process automation
- Stainless steel
- All the parts in contact with the product are of stainless steel 304 or 316 mirror polished
Smelters
To complement the machine – used in melting fats we produce fat smelters with different capacities according to the turbo emulsifier with these technical characteristics:
- Helix mixing, anchor or propeller
- Heating as for the turbo Emulsifier
- All the parts in contact with the product are in stainless steel 304 or 316 mirror polished.
.
.
.
Under vacuum turbo emulsifiers
Nuova Cosmar S.r.l. manufactures under vacuum turbo emulsifiers starting from lab machine handling 5 liters to turboemulsifiers of 15.000 liters.
.
Technical details
Product containment tank
Cylindrical product vessel with cambered bottom and cover.
Emulsifier turbine
placed on the vessel bottom, variable speed by inverter, two mechanical seal lubricated with Vaseline oil in a closed circuit: this system guarantees a noiseless process and long-lasting mechanical seals.
Slow mixing
According to customer needs , there are three types of slow mixing:
- Planetary mixing by shovels with Teflon scrapers
- Coaxial counter-rotating anchor with Teflon scrapers
- Simple anchor with Teflon scrapers and two breakwaters fixed to the cover
The vacuum
The vacuum is created by liquid ring vacuum pump and is automatically kept in a range chosen by the operator.
The cover
According to the type of machine the cover can be open hydraulically, in this case the inspection and the raw materials loading is through a hatch of adequate size.
The heating system
The heating system is chosen according to available energy and machine dimensions and could be :
- Electrical via resistances in the jacket
- Hot circulating water from the plant pipes
- Saturated steam introduced into the jacket
- By diathermic oil from the plant pipes
The cooling
The cooling is always through water which could be tap water or from a closed circuit refrigerated by a chilling system.
Possible accessories
- Sanitary lobe pump to discharge the product
- Filtering for the finished product
- Continuous measurement of product pH
- Washing balls for automatic cleaning
- Loading cells for the components’ dosing
- PLC for process automation
- Stainless steel
- All the parts in contact with the product are of stainless steel 304 or 316 mirror polished
Smelters
To complement the machine – used in melting fats we produce fat smelters with different capacities according to the turbo emulsifier with these technical characteristics:
- Helix mixing, anchor or propeller
- Heating as for the turbo Emulsifier
- All the parts in contact with the product are in stainless steel 304 or 316 mirror polished.
.
.
.
